Mounting 33" Lower Bracket

8 ft or 10 ft  2"x 6"

NOT INCLUDED

92" Upper Adjuster

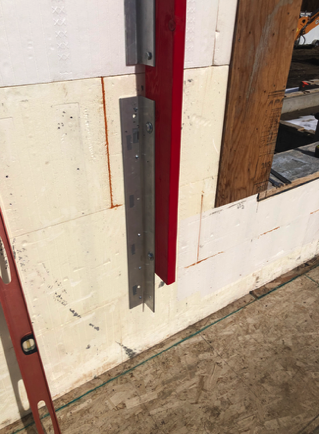

Mount the lower bracket using 6 #12 self tapping sheet metal screws on the center of the web. Be sure the bracket is vertically plumb. If the bracket is not solid enough for upper support use the 3/8" x 6" concrete anchors.

Attach the 2 x 6 using the washers and 1/2"x 2 1/2"  bolts.

1/2" x 2 1/2" bolts

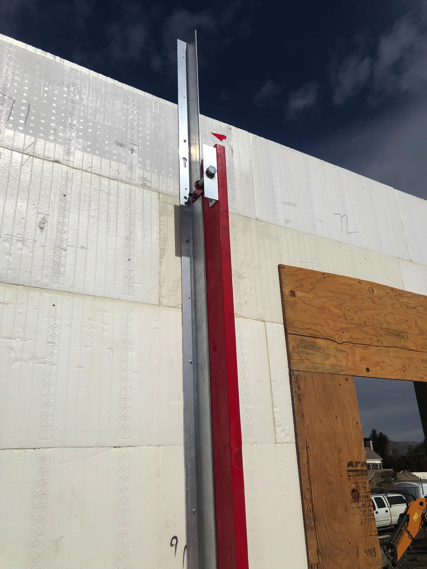

Mount the upper 92" adjuster using a 1/2" x 2 1/2" bolt.

Do not tighten - leave just hand tight so bracket can move.

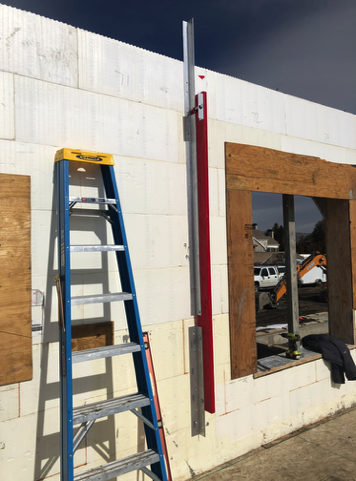

Mount the upper part of the adjuster using  #12 sheet metal screws. Mount even with the edge of the 2 x 6

concrete not yet placed

concrete placed
